Snowflake & Star Vent Hole Template

ChicagoWayVito

Practically Family
Messages
699

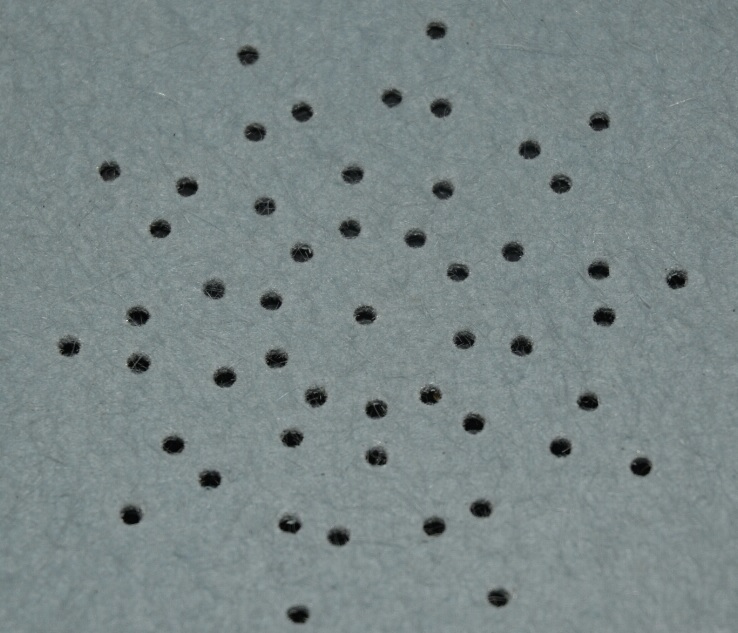

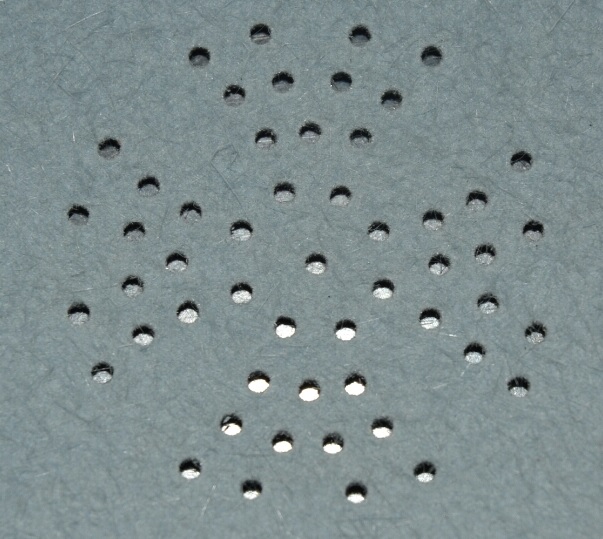

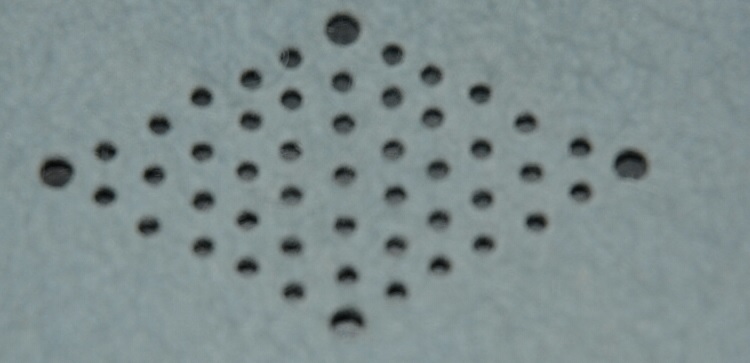

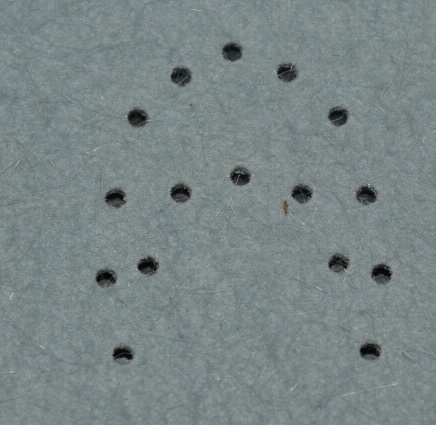

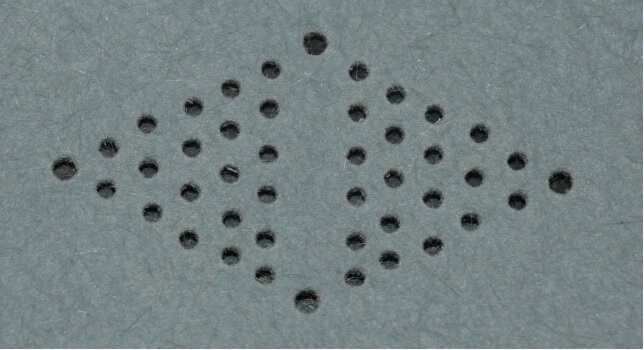

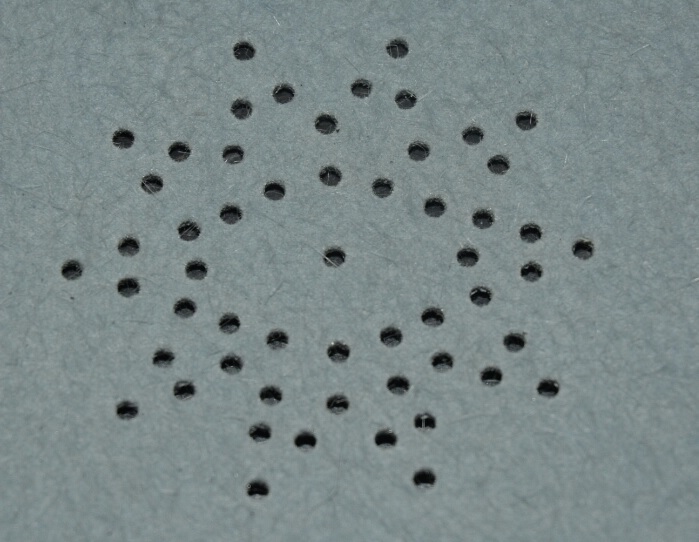

Ok, I updated my entire set of vent templates to better accommodate the punch and then tried them all out. I think they work great and look pretty darn good. Let me know what you think. Here are all 8 that I punched out today.
Vent1.jpg Vent2.jpg Vent3.jpg Vent4.jpg Vent5.jpg Vent6.jpg Vent7.jpg Vent8.jpg


Fed in a Fedora

Practically Family
Messages
738
Location
Dixie, USA
They all look great to me. I have been considering doing either the snowflake or the star pattern on a couple of hats.

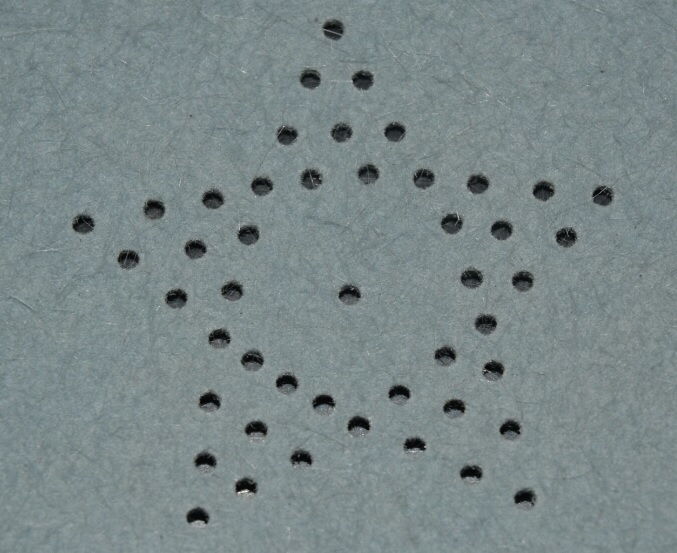

What were the 3 hole punch sizes used on the star? Looks like 1.0, 1.5 and 2.0? That one looks particularly good.

Fed


ChicagoWayVito

Practically Family
Messages
699
They all look great to me. I have been considering doing either the snowflake or the star pattern on a couple of hats. What were the 3 hole punch sizes used on the star? Looks like 1.0, 1.5 and 2.0? That one looks particularly good.
Fed

Thank you!

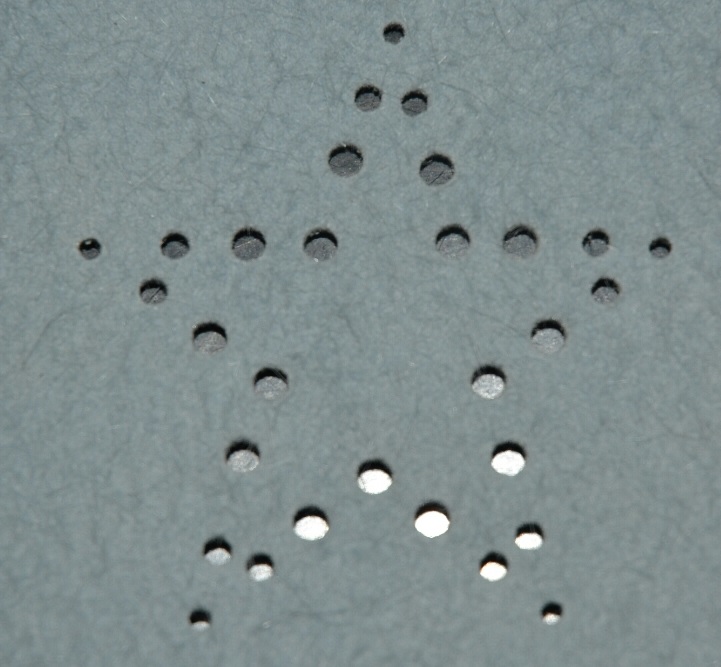

The 3 sizes I used on that star were 2.0, 2.5, and 3.0. You could start with a 1.5 and go up from there but my testing with a 1.0 in felt did not look good as the felt has a bit of a tendency to close in on itself a bit and I wanted the holes to be defined.


LuvMyMan

I’ll Lock Up.
Messages
4,560
Location
Michigan
I have not read that thread yet. I did read one about vent holes not being useful to cooling your head but I am in this for the nice look it can give a hat. Its an extra design element.




Replied to your PM!



By the way, what other designs have you see on hats for vents or what designs would you like to see? If you have a cool suggestion and I make a template from it I will PM you for your address and send you one.

I think you could do one that looks like a half moon, hour glass, heart, arrow! As nice as the ones you have made look now, wow, you could sure make about any design!


ChicagoWayVito

Practically Family
Messages
699
I think you could do one that looks like a half moon, hour glass, heart, arrow! As nice as the ones you have made look now, wow, you could sure make about any design!
Thank you for the kind words and the suggestions. I do like your suggestions and will work on some new designs.


Short Balding Guy

I'll Lock Up
Messages
8,807
Location
Minnesota, USA
Chicago; Excellent. I admire your handy work sir.

Opinions - OK. I have a couple bespoke felts and a couple vtg. felts with vent hole patterns. To my eye I like the more simple patterns as when looked at they are easily discerned. I suggest having a "6 ft look" factor. At 6 ft. can you tell what the design is? If he answer is yes, good design. Complicated designs from close proximity is cool, from afar it is just a mess of holes. #1, 6 and 7 appear to meet my "6 ft. look."

I even have a couple of vtg.straws with the more simple diamond. I do like the looks as they add eye appeal to yet another stars hat when I am out and about.

Eric -


ChicagoWayVito

Practically Family
Messages
699
The
Chicago; Excellent. I admire your handy work sir.

Opinions - OK. I have a couple bespoke felts and a couple vtg. felts with vent hole patterns. To my eye I like the more simple patterns as when looked at they are easily discerned. I suggest having a "6 ft look" factor. At 6 ft. can you tell what the design is? If he answer is yes, good design. Complicated designs from close proximity is cool, from afar it is just a mess of holes. #1, 6 and 7 appear to meet my "6 ft. look."

I even have a couple of vtg.straws with the more simple diamond. I do like the looks as they add eye appeal to yet another stars hat when I am out and about.

Eric -
6 foot look is a great idea. I will have to try that out. Up till now I have been mostly looking for vintage hats with the vents to replicate.


ruvort

One of the Regulars
Messages
110
Location
Portland area
Ok, I updated my entire set of vent templates to better accommodate the punch and then tried them all out. I think they work great and look pretty darn good. Let me know what you think. Here are all 8 that I punched out today.
View attachment 49463 View attachment 49464 View attachment 49465 View attachment 49466 View attachment 49467 View attachment 49468 View attachment 49469 View attachment 49470
Would you be willing to share the design files for these vents? I wouldn't mind trying my hand at them.

Sent from my PH-1 using Tapatalk


Dm101

A-List Customer
Messages
496
Location
Maryland

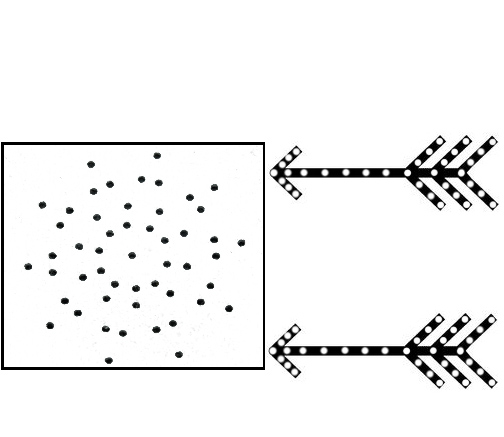

I made these the other day...
Copied and modded in Photoshop...then saved to JPG.


Attachments

  • Arrow stencil.jpg
    Arrow stencil.jpg
    54.5 KB · Views: 731

nabottle

A-List Customer
Messages
327
Location
Lakeland, Florida, U.S.

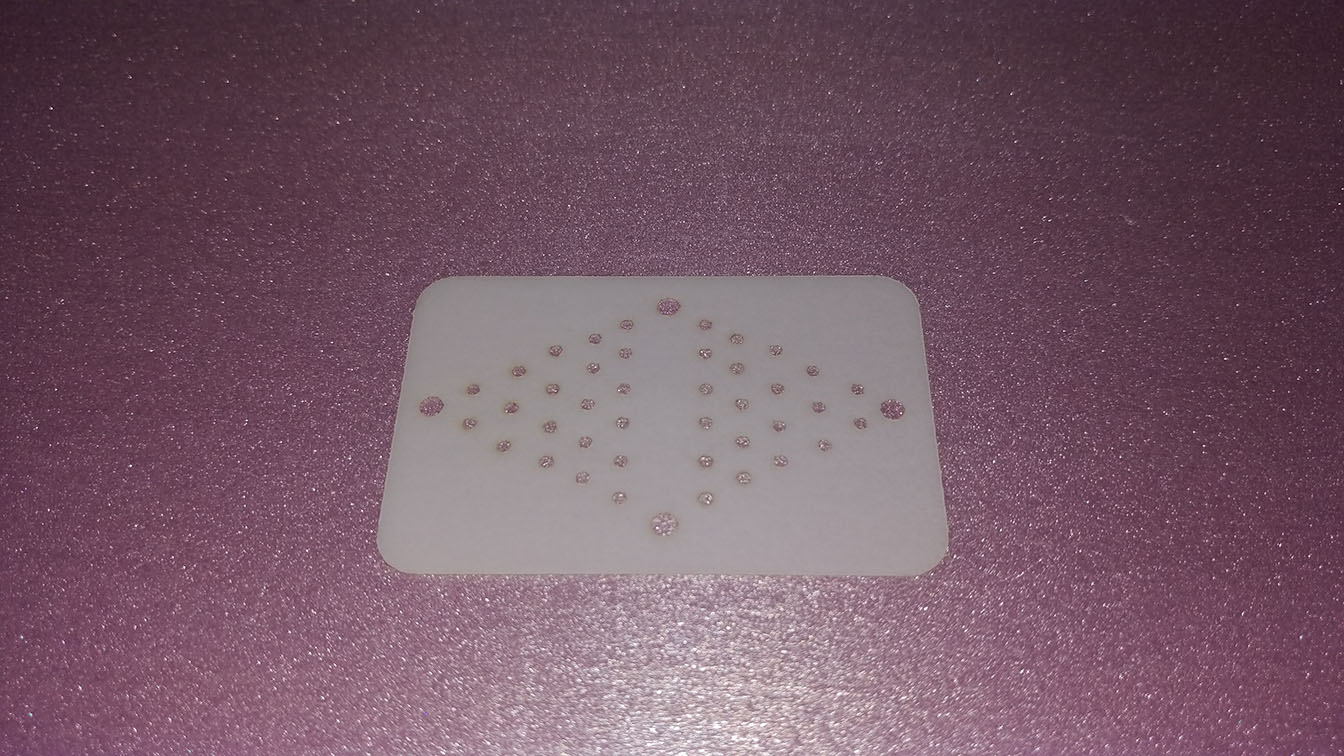

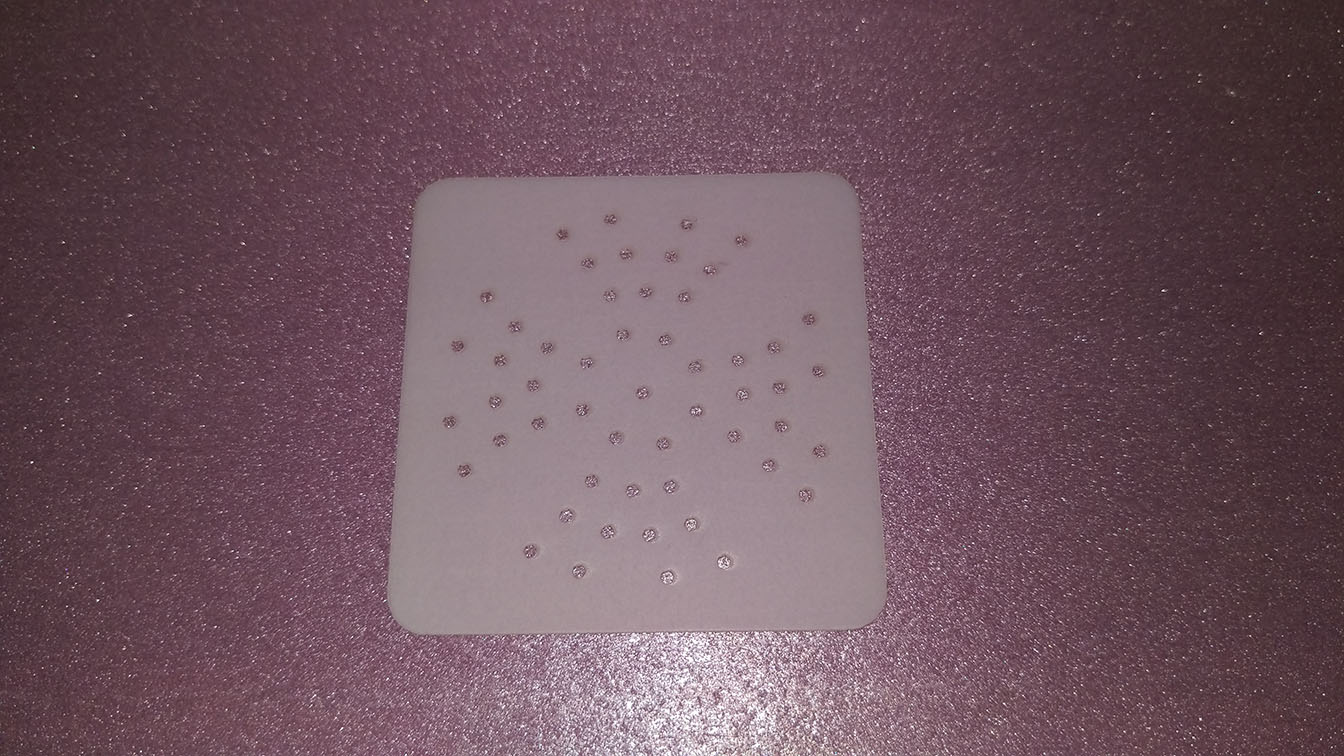

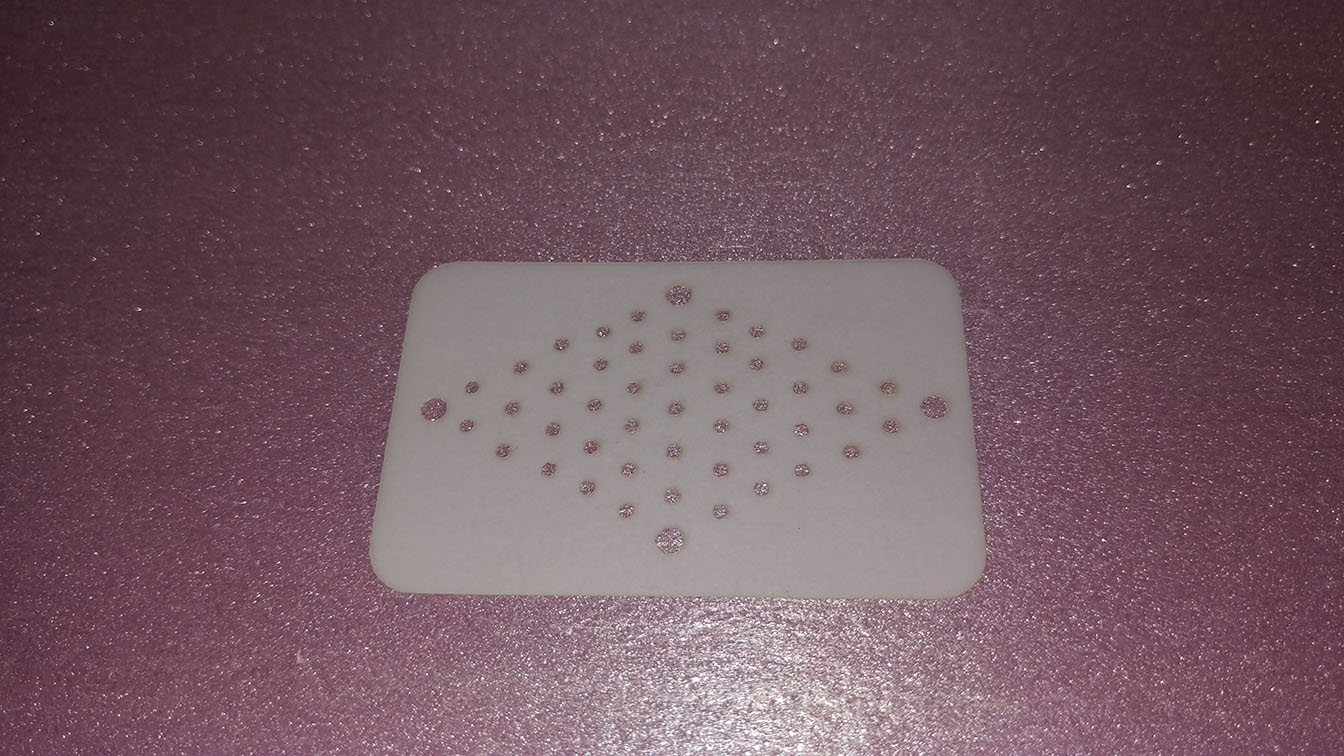

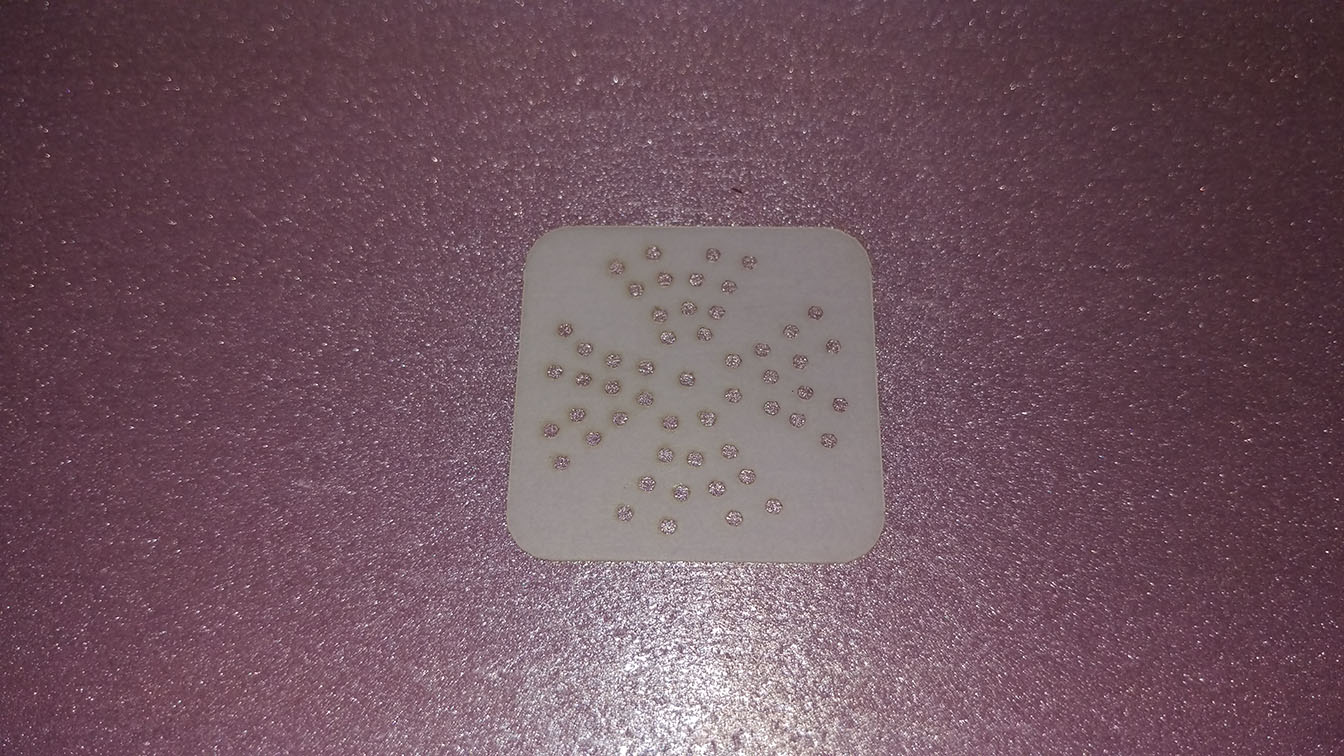

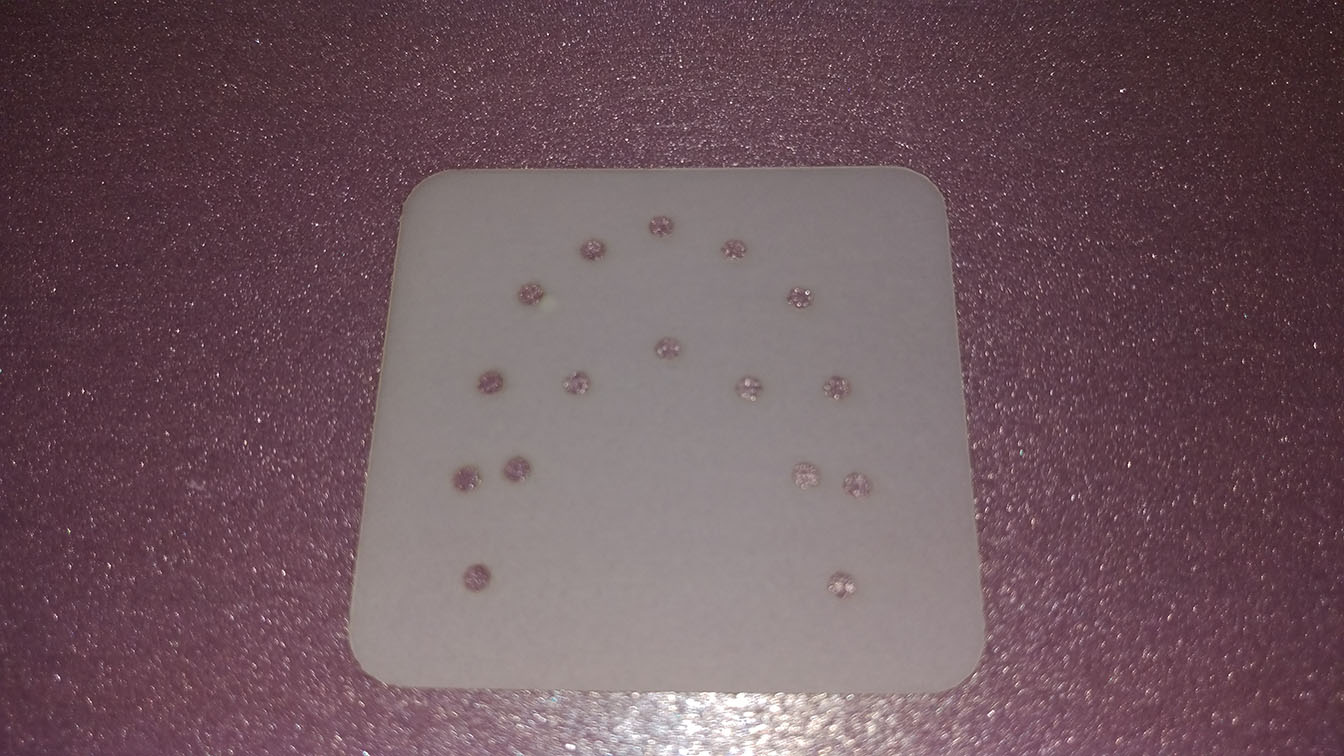

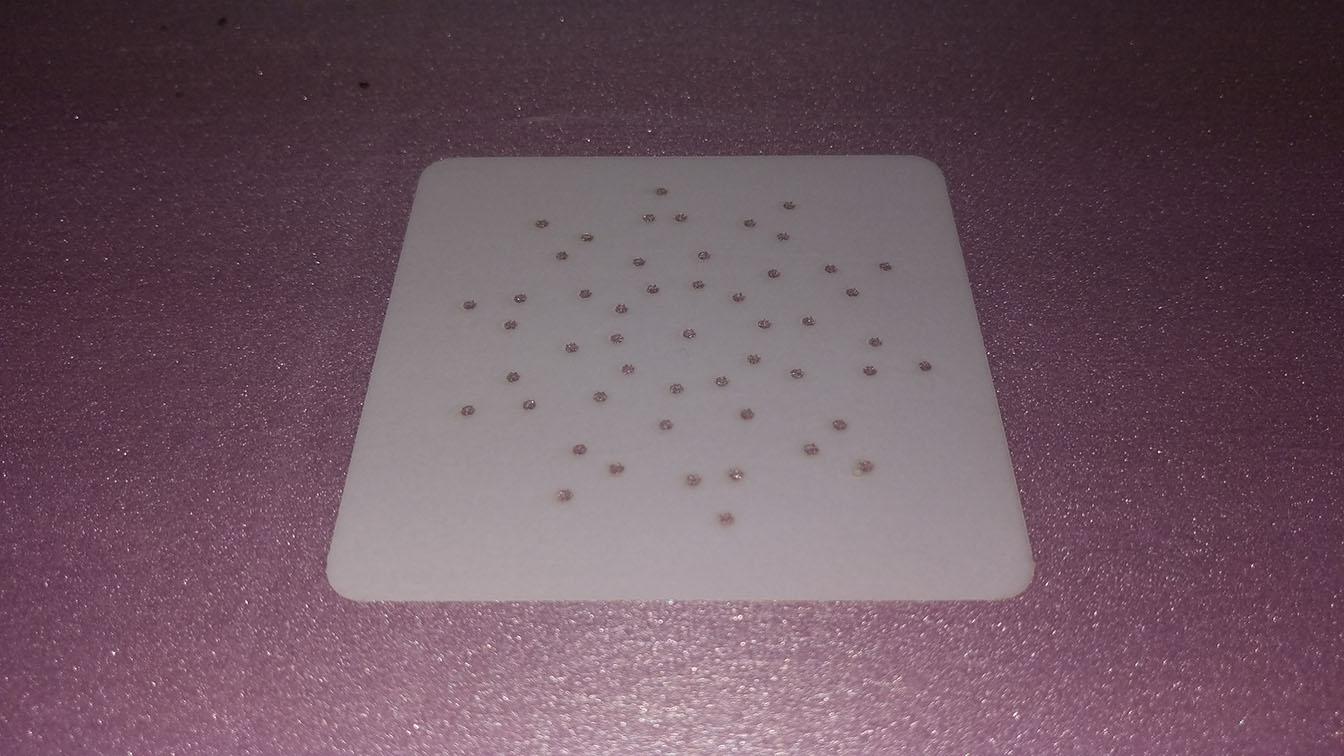

So I was looking through one of the Vintage threads here and found a bunch of vent designs so today I created some templates based off of what I saw. Here they are:
View attachment 32802 View attachment 32803 View attachment 32804 View attachment 32805 View attachment 32806 View attachment 32807

I plan on testing out various methods to make the holes in a few weeks as I need to purchase some felt hat bodies first. Methods I will try are: 1) Leather hole punch 2) Heated Needle 3) Laser cut the design in the felt
Though the information may be on here somewhere, i wanted to ask,"Where can i get a hole punch or something similar with these designs in it? Or is creating a template such as the ones listed our only option to installing really cool vent holes?


nabottle

A-List Customer
Messages
327
Location
Lakeland, Florida, U.S.
Ok, I updated my entire set of vent templates to better accommodate the punch and then tried them all out. I think they work great and look pretty darn good. Let me know what you think. Here are all 8 that I punched out today.
View attachment 49463 View attachment 49464 View attachment 49465 View attachment 49466 View attachment 49467 View attachment 49468 View attachment 49469 View attachment 49470
These look great! I'd love to get my hands on them or something similar.


belfastboy

I'll Lock Up
Messages
8,882
Location
vancouver, canada

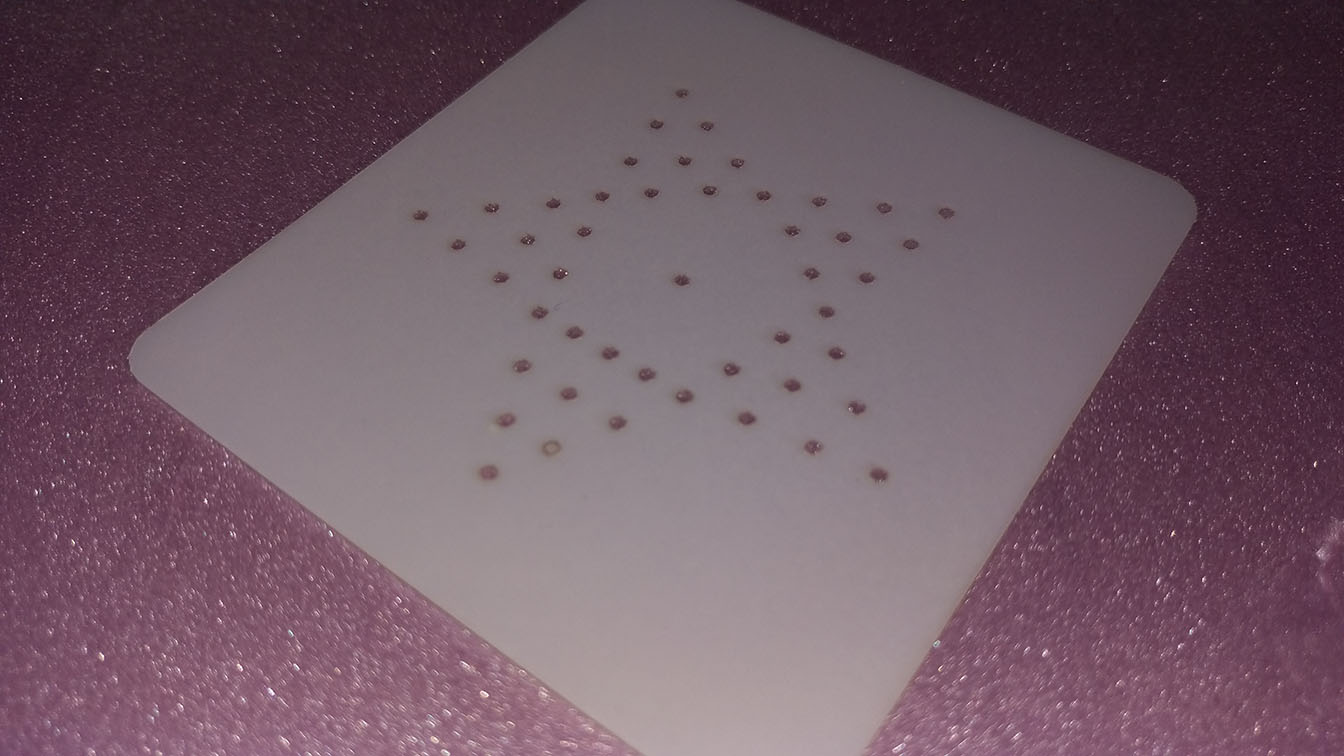

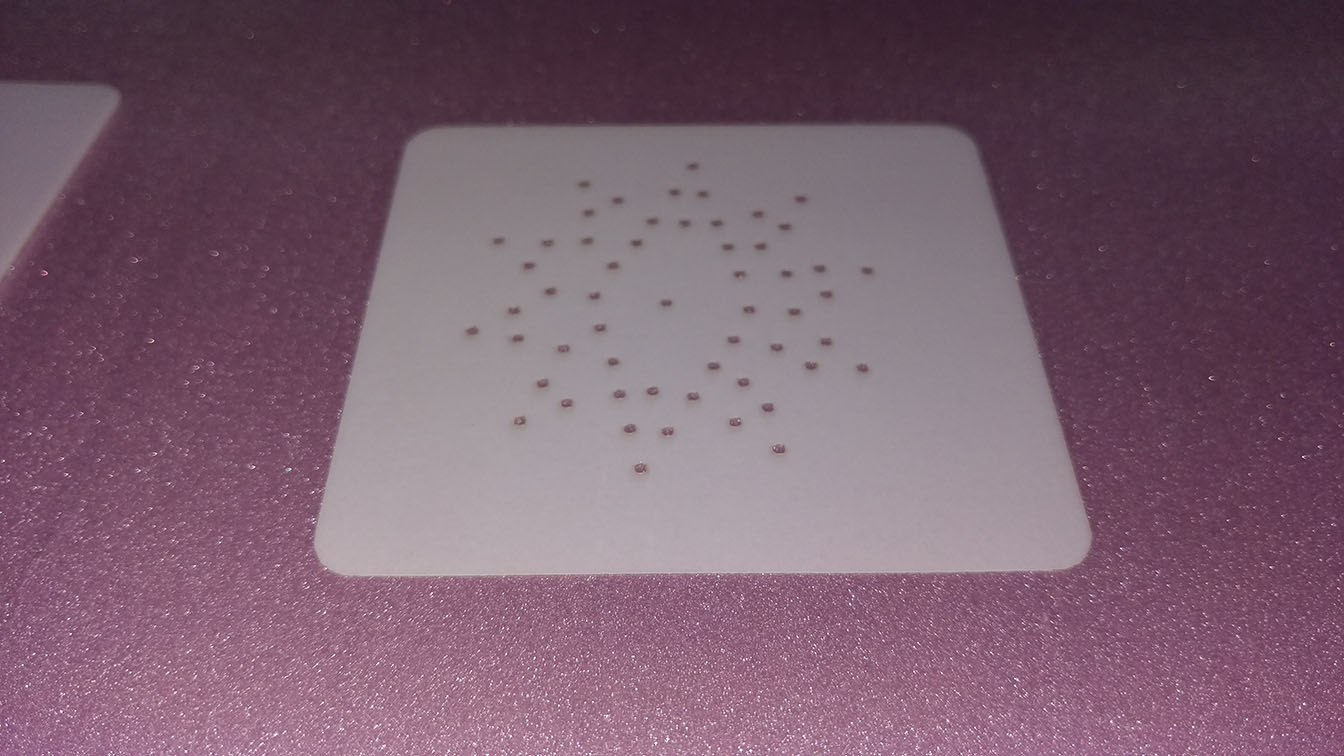

I just created these two templates and cut them out on a laser cutter. I hope to try them out soon. The thought is that I could mark the felt with powered chalk or a disappearing fabric marker and only the hole marks would be left behind. Just need to get a small leather punch and try it out. The actual designs measure about 1.5" squared. I will post back here after I have actually used them. The pink surface was just some insulation foam to help show the patterns.

View attachment 32677 View attachment 32678
Did you ever try these out? What size of punch did you use? 1.8mm is the smallest punch i can find at Tandy.


ChicagoWayVito

Practically Family
Messages
699
Did you ever try these out? What size of punch did you use? 1.8mm is the smallest punch i can find at Tandy.
Yeah, these work great. In fact I punched a design into the crown of the hat that I am working on now. I like 1.5mm for punching, 2mm feels too big for my liking and 1mm is too small. You can get punches on Amazon that are smaller than 1.8mm

Messages
16,662
Location
Central California
After getting my first vented crown hat from @ChicagoWayVito I’ve become smitten. The airflow really makes a difference. I have a couple others in the works. Getting the size of the pattern and the size of the holes right is critica (Kevin nailed mine).

Here’s a different hatter trying to work it out on a practice felt:



What do you think? Is the pattern too large? Are the holes too large? I sure wouldn’t want either any larger.


Mighty44

Practically Family
Messages
792
I do think it is too large and the holes are too large. But also hard to tell without seeing it creased. It would definitely get more air through.

Messages
16,271
Location
Nederland
After getting my first vented crown hat from @ChicagoWayVito I’ve become smitten. The airflow really makes a difference. I have a couple others in the works. Getting the size of the pattern and the size of the holes right is critica (Kevin nailed mine).

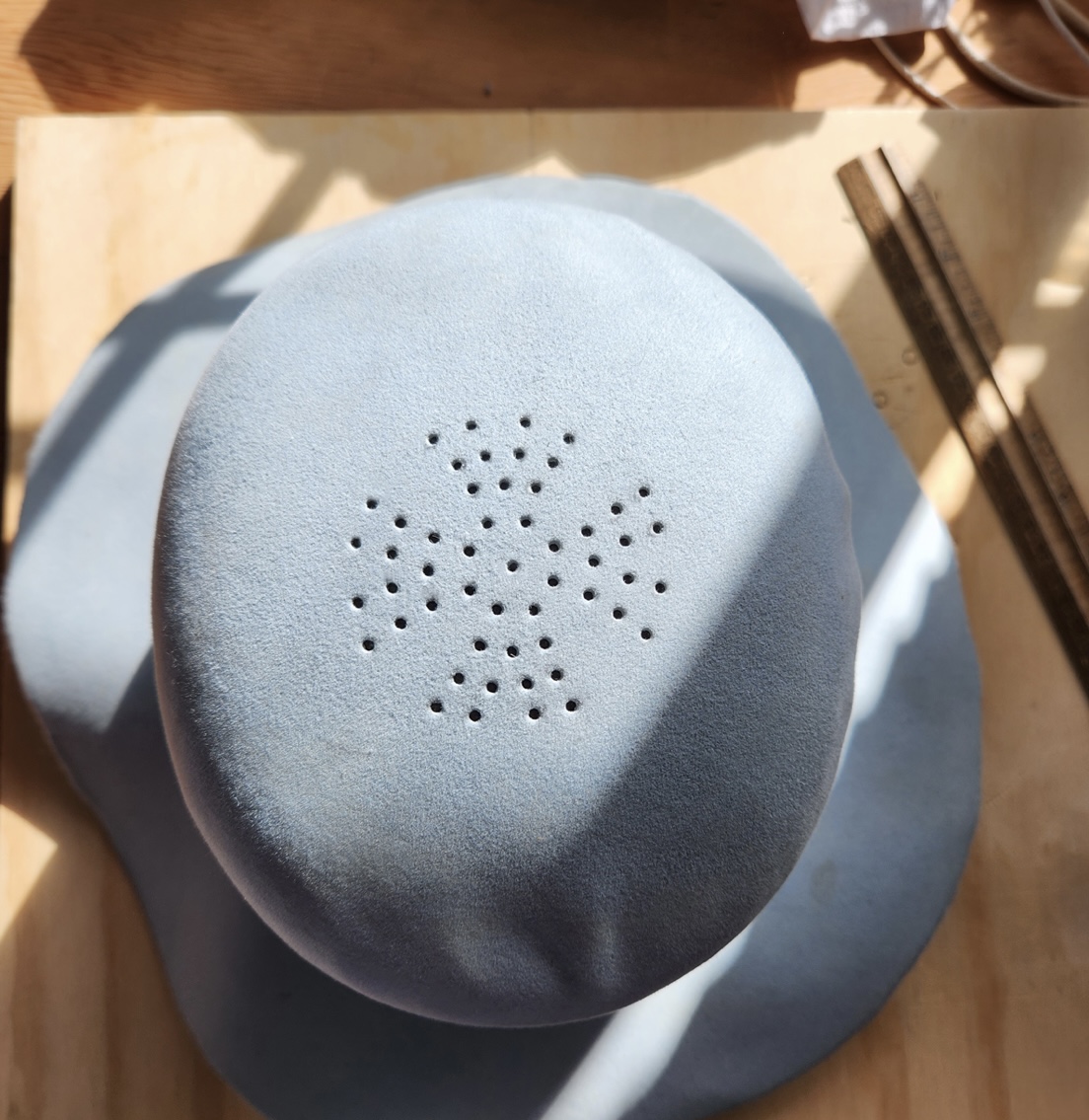

Here’s a different hatter trying to work it out on a practice felt:

View attachment 482670

What do you think? Is the pattern too large? Are the holes too large? I sure wouldn’t want either any larger.
I think the pattern can be quite large as long as the holes are small. These seem too large to me. Here's one I posted recently.


Messages
16,662
Location
Central California
I do think it is too large and the holes are too large. But also hard to tell without seeing it creased. It would definitely get more air through.

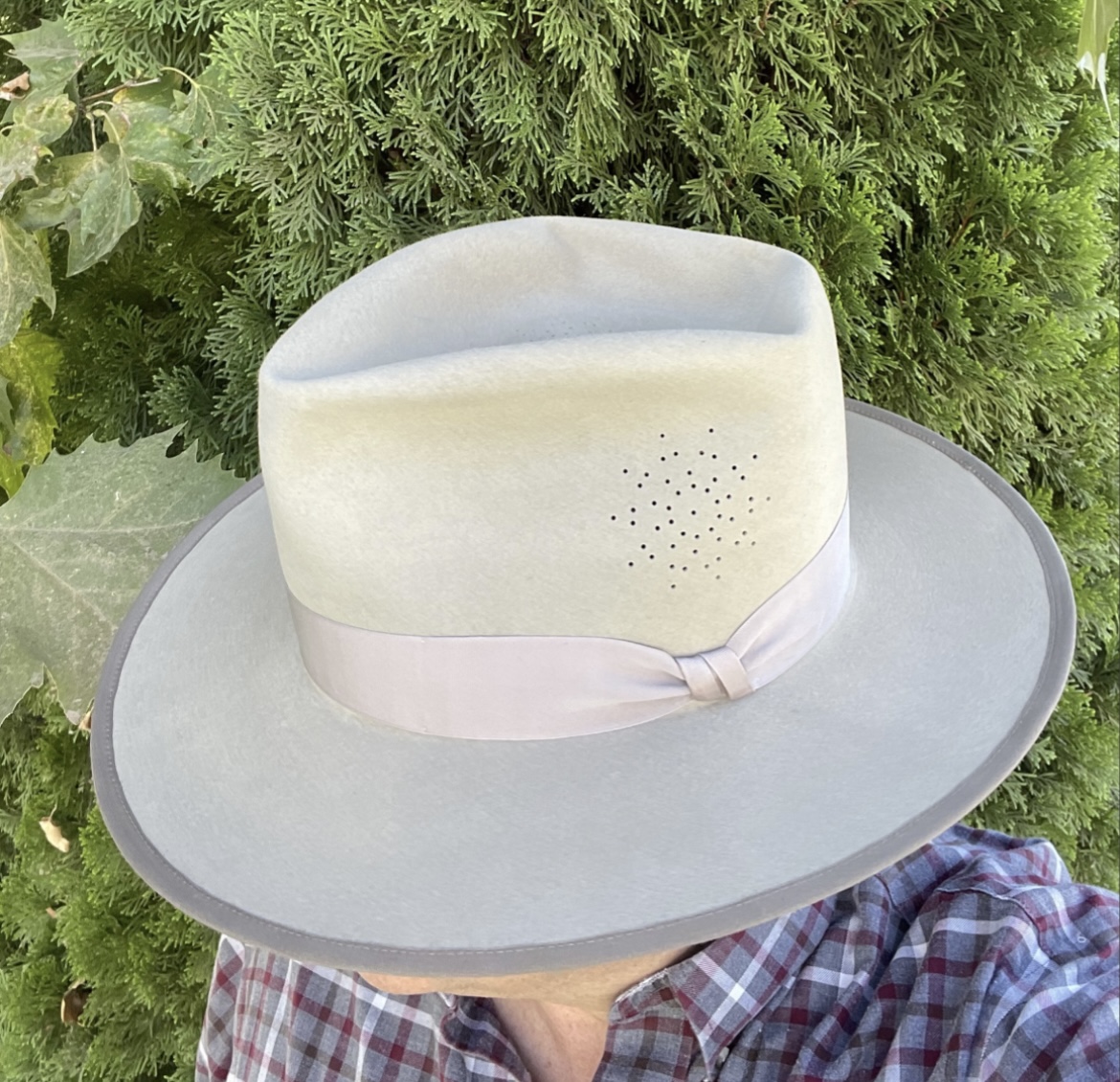

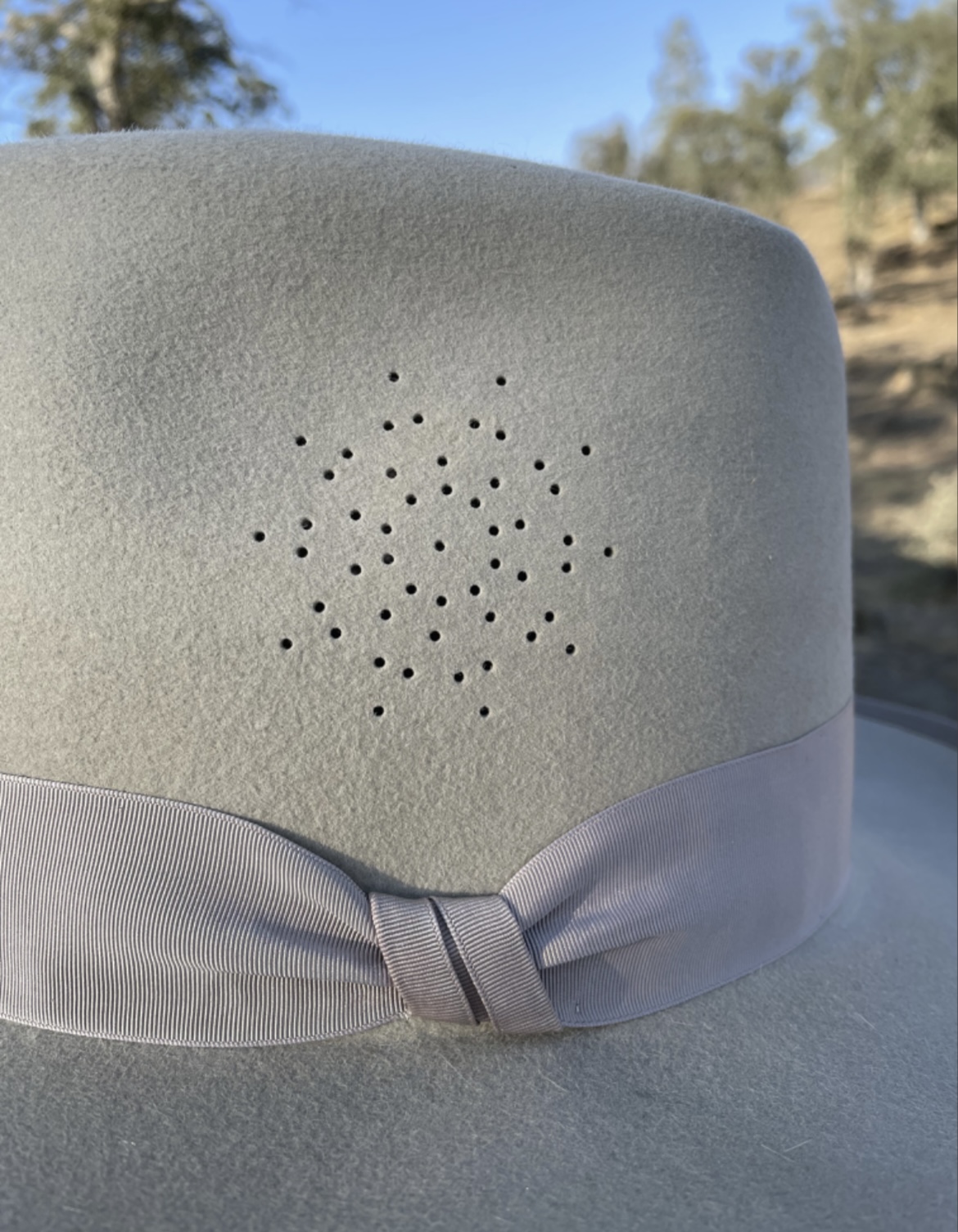

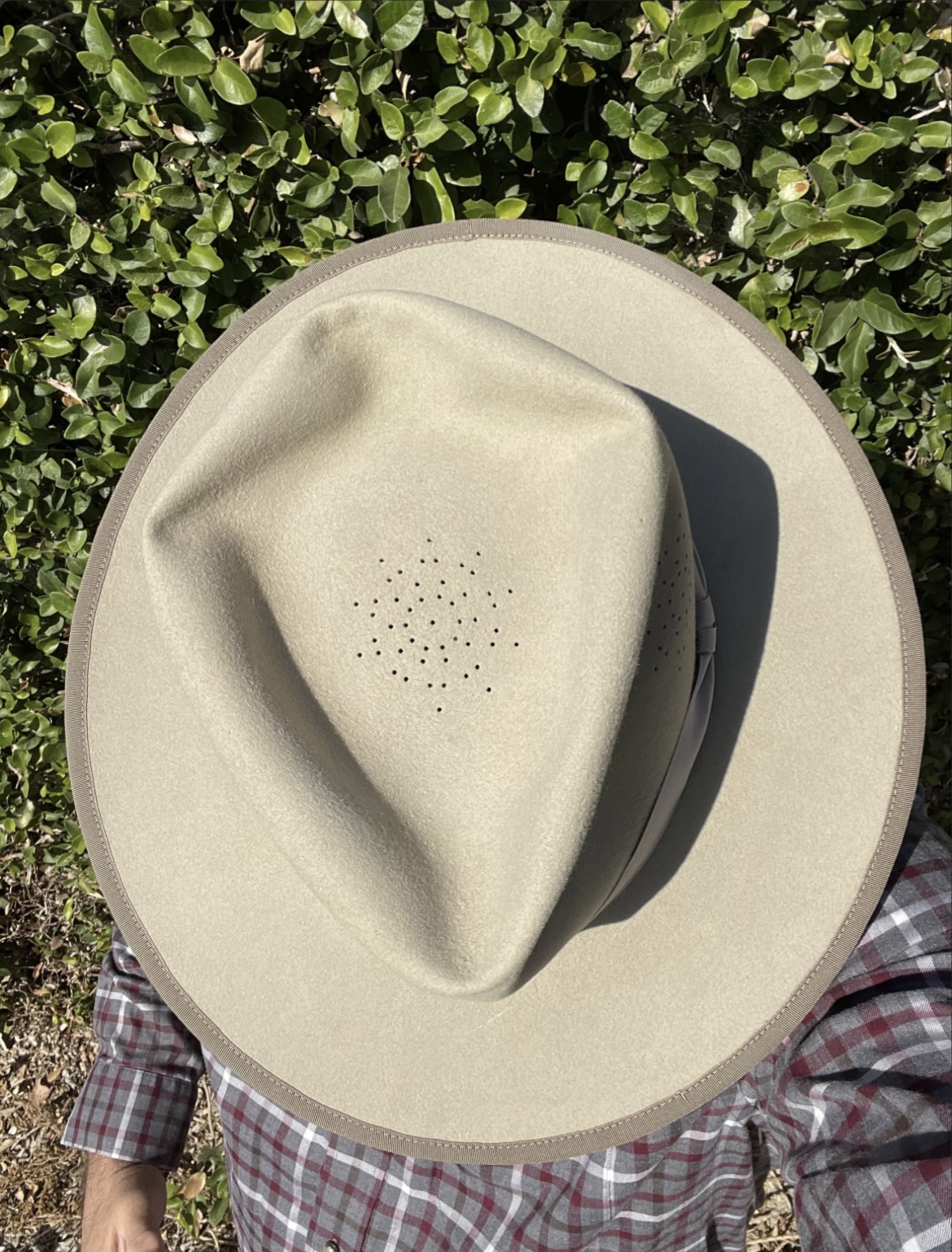

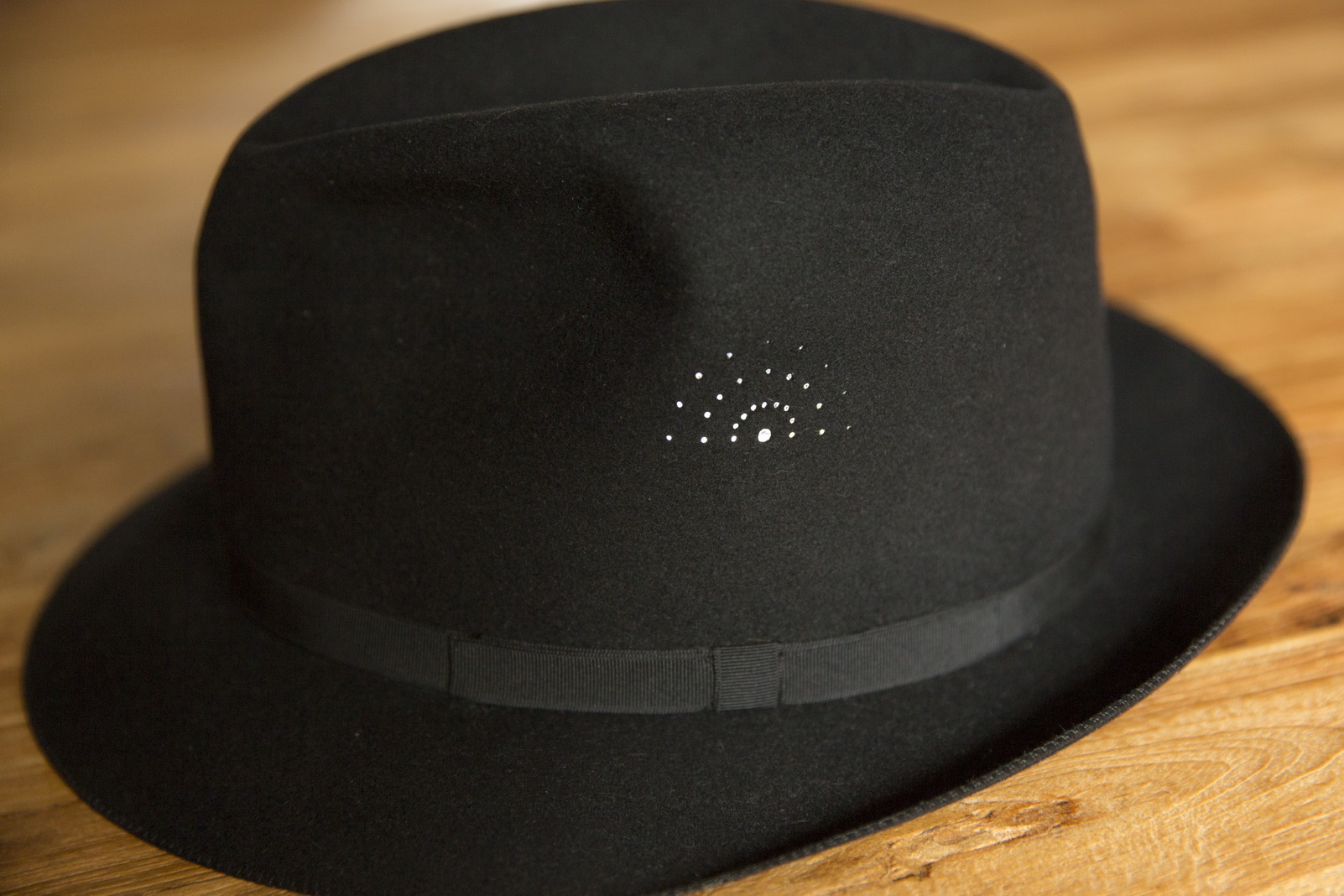

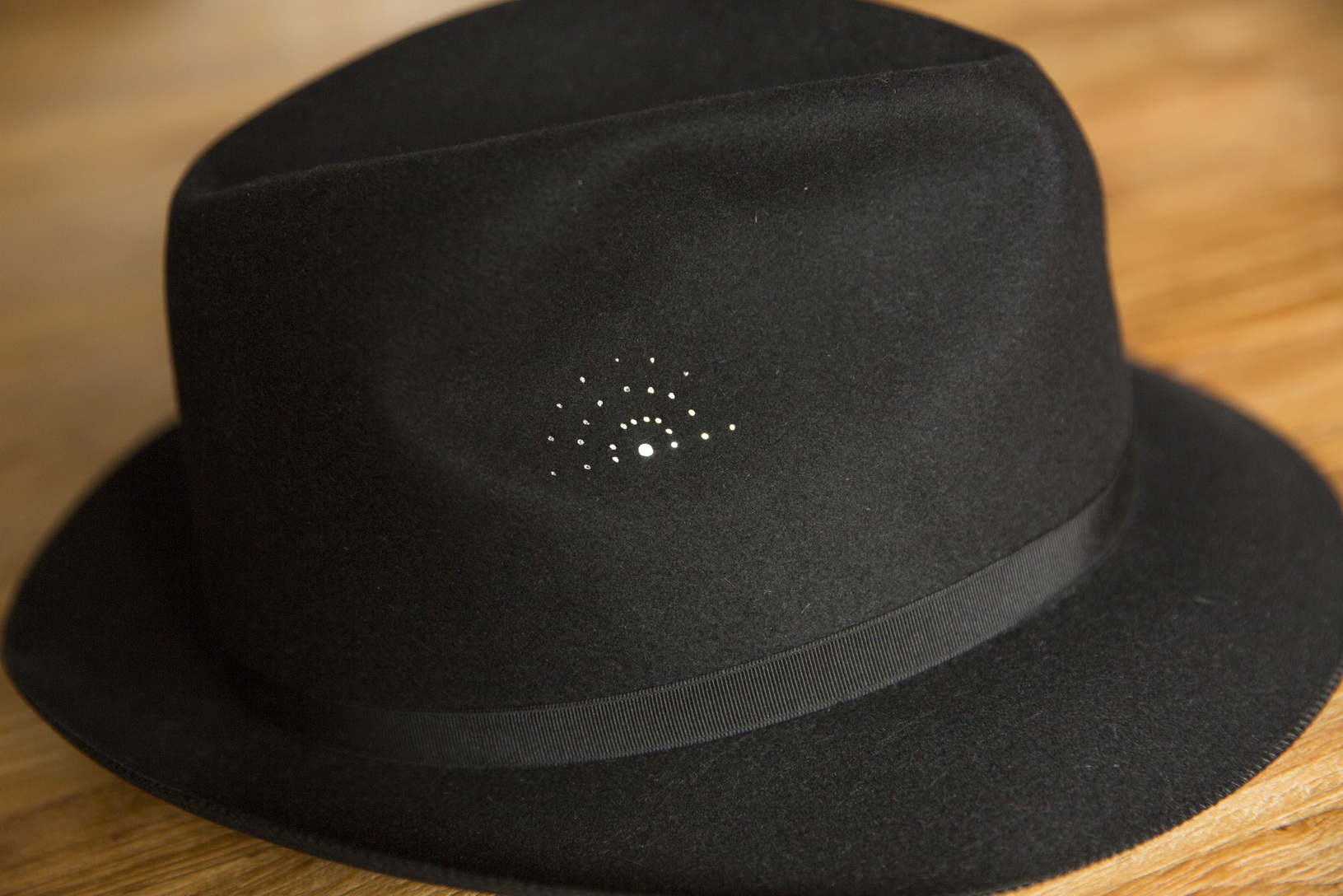

I think the pattern can be quite large as long as the holes are small. These seem too large to me. Here's one I posted recently.

View attachment 482683 View attachment 482684


I have to agree. I like that the smaller holes disappear unless you’re very close. We’ll see what can be done.

Messages
16,662
Location
Central California
That looks perfect. I also love the diamond pattern side vents on old Playboys. I sent Michael some photos and asked Eric @Short Balding Guy for some measurements to forward and hope he can pull it off.


Michael told me he had a customer who was asking for venting. I’m always impressed when someone is willing to take risks and do things they haven’t tried before.
